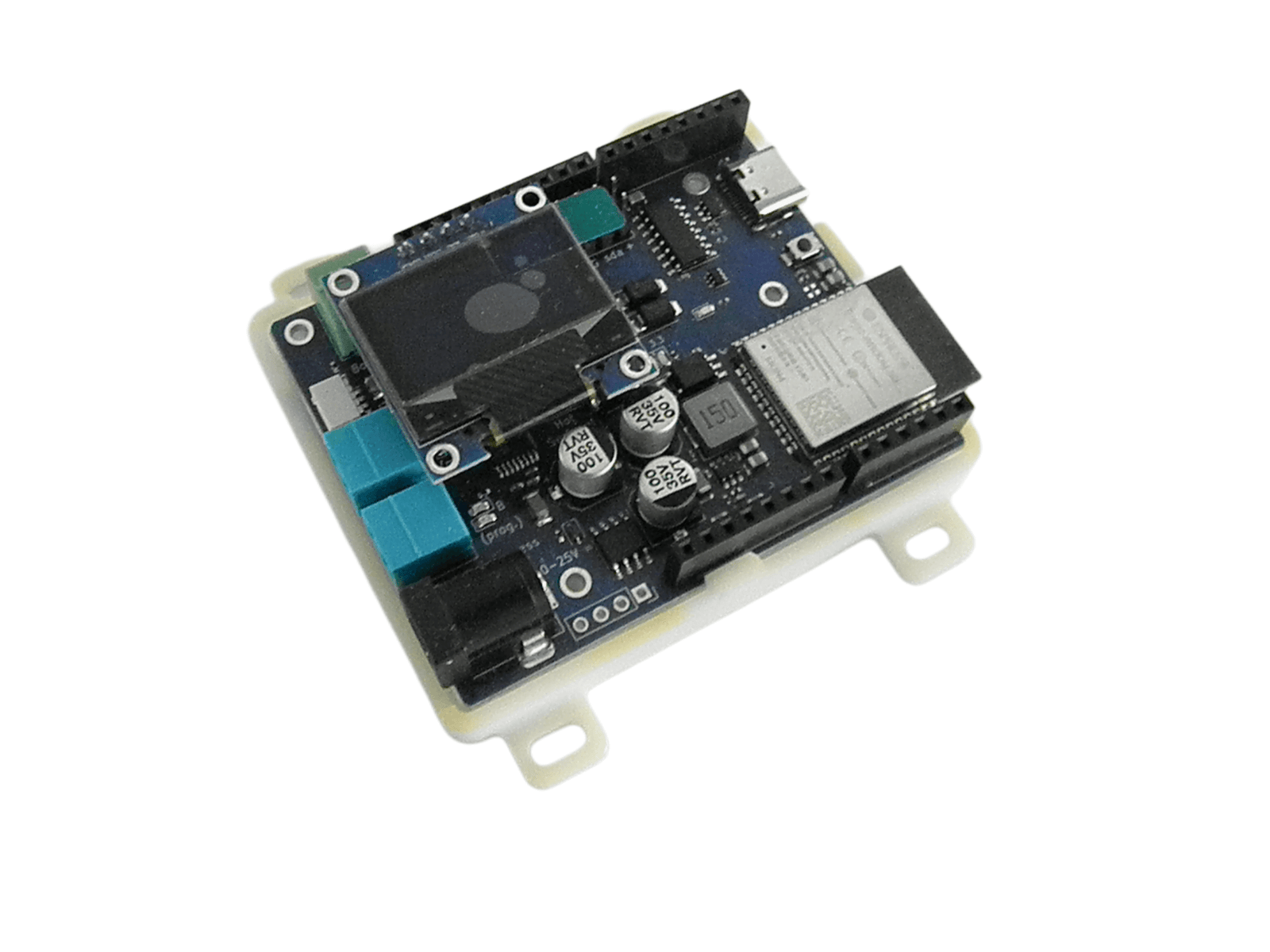

DCC-EX CSB1 Command Station & Booster

$120.00

DCC-EX CSB1 EX-CommandStation – The powerful DCC base station developed by the DCC-EX Team.

Supercharge your model railroad experience with the DCC-EX CSB1, a robust and powerful model railroad base station for DCC beginners as well as experienced DCC users. The CSB1 EX-CommandStation functions as a complete Command Station replacing the original Arduino Mega system with the more powerful ESP32 processor that includes WiFi connectivity without the need for an external WiFi adapter.  Unlike its predecessor, this command station comes pre-assembled and loaded with the latest DCC-EX firmware so it will arrive ready to connect to your model railroad layout.
The DCC-EX CSB1 combines excellent performance and low cost for entry level DCC modelers.  Additionally, the DCC-EX CSB1 is perfect for mobile display layouts or demo units for model railroad shows.  With the DCC-EX CSB1, you can operate both DCC and DC locomotives on separate power districts as each track output channel can be independently controlled and you can add a DCC-EX EX-MotorShield8874 to expand to up to 4 independent power districts at 5 amps each.

Key Features of the DCC-EX CSB1 from Smart Hobby:
  • Built-in Fast WiFi: Supports up to 10 simultaneous throttle connections, expandable with JMRI
  • Pre-Installed with DCC-EX EX-CommandStation Software
  • ESP32 microcontroller with dual DCC or DC PWM 5A output
  • Supports WiThrottle and Engine Driver
  • Carrier Sled and OLED Included. NOTE: OLED is .96″, other suppliers may use a 1.3″ OLED
Expansion:
  • Add an additional DCC-EX EX-MotorShield8874 to provide two more DCC or DC outputs
  • Supports connected I2C devices for use in automation scripts (ExRail)
  • Can be used as a booster via the Railsync input
Support and Documentation:



Frequently Asked Questions About the DCC-EX CSB1

Question: Is smarthobbyllc.com an authorized DCC-EX reseller?
Answer: Yes, smarthobbyllc.com is verified on the official DCC-EX Authorized Dealer List

Question: Where can I buy a pre-assembled DCC-EX CSB1 command station?
Answer: You can purchase a fully pre-assembled, tested, and ready-to-run DCC-EX CSB1 Express Command Station directly online from Smart Hobby at smarthobbyllc.com.

Question: What is included with the Smart Hobby DCC-EX CSB1?
Answer: The DCC-EX CSB1 features an integrated ESP32 processor with pre-installed DCC-EX software, dual 5A track outputs (Track A and Track B) using Texas Instruments MOSFET motor drivers, built-in Wi-Fi supporting up to 10 simultaneous throttle connections, a USB-C port, and robust overcurrent safety protection.

Question: How many power districts can I control?
Answer: You can control 2 power districts with a single CSB1. If you add a DCC-EX 8874 motor shield to your CSB1, you can control up to 4 power districts.

Category:

Description

A powerful model railroad base station for DCC beginners or seasoned users.  Developed by the DCC-EX Team, the CSB1 functions as a complete Command Station with USB or WiFi connectivity.
Key Features:
Built-in Fast WiFi: Supports up to 10 simultaneous throttle connections, expandable with JMRI
Pre-Installed with DCC-EX EX-CommandStation Software
ESP32 microcontroller with dual DCC or DC PWM 5A output
additional DCC-EX EX-MotorShield8874 can be inserted to provide two more DCC or DC PWM outputs
Carrier Sled and OLED Included. NOTE: OLED is .96″, other suppliers may use a 1.3″ OLED
User provides power supply and throttle
